GS 2350 SA

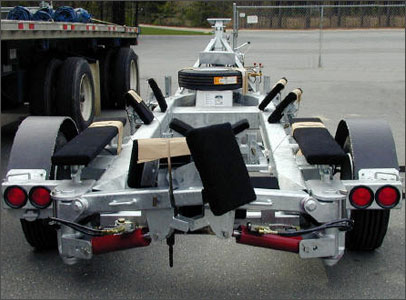

HOSTAR Gold Star Series Model 2350SA Hydraulic Boat Trailer, configured with the following equipment and/or specifications:

• To handle power boats and shoal draft sailboats to 25 feet (highway)
• Overall trailer length of 24 feet
• Overall trailer width of 8 feet
• Capacity of 7,000 pounds over the road, 9,000 pounds in the yard
• 6" x 6" steel square tube main frame
• Hydraulics:
    * Two rear hydraulic arms with offset reversible pads
    * Front hydraulic cylinder for fore and aft lifting/leveling
    * Manual hydraulic control valves
    * 12VDC hydraulic power unit
    * Pilot-operated double-locking valves on all cylinders
• Outboard air-ride suspension with shock absorbers
• Field-replaceable reinforced fiberglass suspension bushings
• Adjustable rolling dolly forward V-pad cross beam
• Ratchet-adjustable swing-out rear cross beam with removable booster block
• Two 215/75R17.5 16 ply Load Range H radial tires (hwy. capacity 4,805 lbs. each)
• Electric brakes with breakaway switch and D.O.T. wiring
• Flexible fenders
• Two screw pad stabilizers with sockets and T-pins, mountable to frame
• Stainless steel T-pins and hardware
• Extra-bright LED submersible lighting system
• Hydraulically operated pintle ring draw bar with safety chains
• Expanded metal basket at trailer front
• Two parking stands
• Finish: Frame sandblasted to white steel; finished with two coats high-build epoxy primer with hardener,
             three coats high performance acrylic urethane with hardener - choice of color

Production Time: Twelve to fourteen weeks from start of construction



















Available Options


• Galvanized frame, arms, cross beams
• 12VDC air compressor with cover, mounted on mast
• Remote control with pendant operation, priced per hydraulic function
• Remote control with pendant operation, priced per air function
• Wireless remote in lieu of pendant operation
• Pivoting rear hydraulic arms in lieu of standard arms
• Electric over hydraulic brakes
• Corrosion-resistant disc brake package
• Inside frame lights, priced per pair (galvanized frame only)
• 9.5K electric planetary gear winch on telescoping mast mount
• Extra stabilizers with sockets and T-pins (set of 2)
• Frame extended, priced per foot
• Spare tire and wheel
• Self-centering V-pad on rolling dolly
