HPT 3100

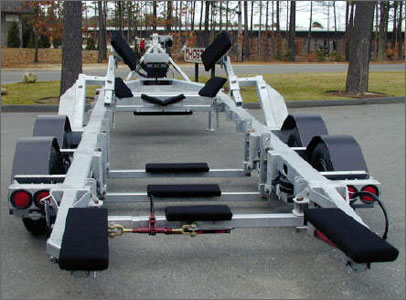

Hydraulic Road HPT Boat Trailer Series 3100


HOSTAR Model HPT 3100 Hydraulic Boat Trailer, configured with the following equipment and/or specifications:

• To handle powerboats and shoal draft sailboats to 33 feet
• Overall trailer length of 32 feet
• Overall trailer width of 8 feet 6 inches
• Capacity of 13,000 lbs. over the road, 17,000 lbs. in the yard
• 6" x 6" steel square tube main frame
• Hydraulics:
    * Two rear hydraulic arms with offset reversible pads
    * Front hydraulic cylinder for fore/aft lifting/leveling
    * Manual hydraulic control valves
    * 12VDC electric hydraulic power unit
    * Pilot-operated double-locking valves on all cylinders
• Rocking beam suspension
• Adjustable, movable and reversible forward cross beam
• Two-position ratchet-adjustable swing-out rear cross beam
• Four 900 x 14.5, 12 ply, Load Range F tires
• Electric brakes on all wheels with D.O.T. wiring and breakaway switch
• Flexible fenders
• Two movable screw pad stabilizers with sockets and T-pins
• Stainless steel T-pins and hardware
• Extra-bright LED submersible lighting system
• Hydraulically operated pintle draw bar with safety chains
• Expanded metal basket at trailer front
• Two parking stands
• Finish: Frame sandblasted to white steel; finished with two coats high-build epoxy primer with hardener,
             three coats high performance acrylic urethane with hardener -choice of color

Production Time: Twelve to fourteen weeks from start of construction

Available Options

• Galvanized frame, arms, cross beams
• Galvanized arms, arm inserts, pad brackets, parking stands only
• 12 VDC air compressor with cover, mounted on mast
• Four-wheel air-ride suspension with air storage tank
• Remote control with pendant operation, priced per hydraulic function
• Remote control with pendant operation, priced per air function
• Wireless remote operation in lieu of pendant operation
• Electric over hydraulic brakes
• Corrosion-resistant disc brake package
• 9.5K electric planetary gear winch on telescoping mast mount
• Extra stabilizers with sockets and T-pins (set of 2)
• Frame extended, priced per foot
• Spare tire and wheel
• 235/85R16 LRG tires and wheels for electric/hydraulic brakes
• Spare 235/85R16 LRG tire and wheel
• Fixed gooseneck for fifth-wheel operation
• Hydraulically articulating gooseneck for fifth-wheel operation
• Forward hydraulic arms, extendable
• Two telescoping beams for sailboat keels
• Additional forward V-pad cross beam
