HST 3600

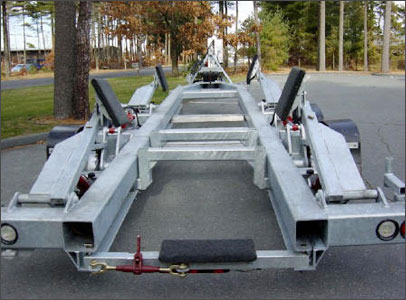

HOSTAR Model HST3600S Hydraulic Boat Trailer, configured with the following equipment and/or specifications:

• To handle power boats and sailboats to 36 feet
• Overall trailer length of 33 feet
• Overall trailer width of 8 feet 6 inches (or 9 feet, if desired)
• Capacity of 18,000 lbs. over the road, 24,000 lbs. in the yard
• 8" x 8" x 3/8" steel square tube main frame
• Hydraulics:
    * Four fully adjustable hydraulic arms for up to 6' draft
    * Hydraulic lifting and lowering of trailer main frame
    * Hydraulically operated front landing wheels
    * Front hydraulics for fore and aft leveling of main frame
    * Solenoid-actuated remote control with handheld box and walk-around cable
    * 12VDC electric hydraulic power unit
    * Pilot operated double-locking valves on all cylinders
• Three removable slide-through cross beams
• Cross beam pockets through and underneath the frame
• Hydraulic walking beam suspension
• Four 215/75R 17.5 tires, 16 ply rating
• Electric brakes on all wheels with D.O.T. wiring and breakaway switch
• Flexible fenders
• Extra-bright LED submersible lighting system
• Stainless steel T-pins and hardware
• Hydraulically operated pintle ring draw bar with safety chains
• Finish: Frame sandblasted to white steel, finished with two coats high-build epoxy primer with hardener,
             three coats high performance acrylic urethane with hardener - choice of color

Production Time: Twelve to fourteen weeks from start of construction



Available Options


• Galvanized frame, arms, cross beams
• Galvanized arms, arm inserts, pad brackets, cross beams only
• 12VDC air compressor mounted on trailer
• Air-ride in lieu of hydraulic suspension
• Wireless remote control in lieu of pendant operation
• Electric over hydraulic brakes
• Corrosion-resistant disc brake package
• 9.5K electric planetary gear winch on telescoping mast mount
• Frame extended, priced per foot
• Spare tire and wheel
• Fixed gooseneck for fifth-wheel operation
• Hydraulically articulating gooseneck for fifth-wheel operation
• Additional pair hydraulic arms
• Reinforced aluminum cross beams, priced per cross beam
• Manual hydraulic controls in lieu of remote - deduct
• No hydraulically operated landing wheels - deduct
