HSTA 3800

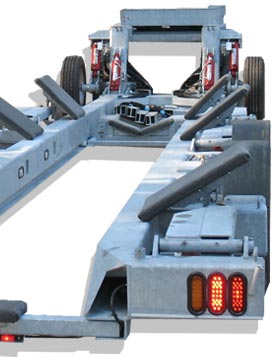

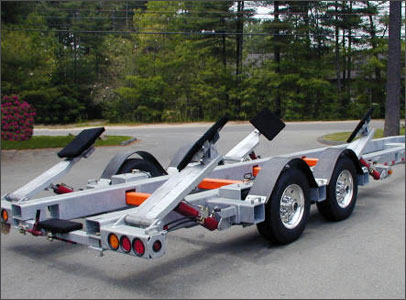

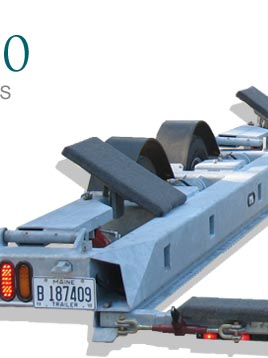

HSTA 3800 Hydraulic TrailerHSTA Hydraulic Boat Trailer Series 3800


HOSTAR Model HSTA3800 Hydraulic Trailer, configured with the following equipment and/or specifications:

• To handle powerboats and sailboats to 37 feet
• Overall trailer length of 38 feet
• Overall trailer width of 8 feet 6 inches
• Capacity of 22,000 lbs. over the road, 26,000 lbs. in the yard
• 8" x 10" x 3/8" structural steel main frame
• Hydraulics:
    * Four hydraulic arms, extendable to handle to 6' draft
    * Hydraulically operated front landing wheels
    * Front hydraulics for fore and aft leveling of main frame
    * Solenoid valves for remote operation with handheld control box and walk-around cable
    * Pilot operated double-locking valves on all cylinders
    * 12 VDC electric hydraulic power unit
• Remote control - 6 hydraulic functions, 2 air functions
• Outboard four-wheel air-ride suspension, plus shock absorbers
• Air shutoff valves and straps for lifting axles
• Cross beam pockets through main frame
• Three removable slide-through cross beams
• Height-adjustable rolling dolly cross beam with V-pad
• 12,000 lb. Dexter Heavy-Duty Series axles
• Four 235/75R 17.5 radial tires, 16 ply rating
• Hydraulic disc brakes with stainless steel caliper pistons
• D.O.T. flexible brake lines with brass fittings
• Stainless steel T-pins, hardware
• Expanded metal basket at front of frame
• Flexible fenders
• Extra-bright LED submersible lighting system
• Hydraulically operated pintle ring draw bar with safety chains
• Breakaway switch
• Galvanized frame, arms, cross beams, covers

Production Time: Fourteen to sixteen weeks from start of construction

Road HSTA Boat Trailer Series 3800

Available Options

• 12 VDC air compressor mounted on trailer front
• Wireless remote control
• Corrosion-resistant disc brake package
• Inside frame lights, priced per pair
• Strobe light at rear of trailer frame
• 9.5K electric planetary winch on telescoping mast mount
• Spare tire and wheel
• Hydraulically articulating gooseneck for fifth-wheel operation
• Additional pair hydraulic arms
• Reinforced aluminum cross beams in lieu of steel, priced per cross beam
• No hydraulically operated landing wheels - deduct
