Yard Star 35

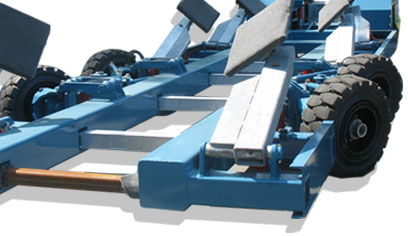

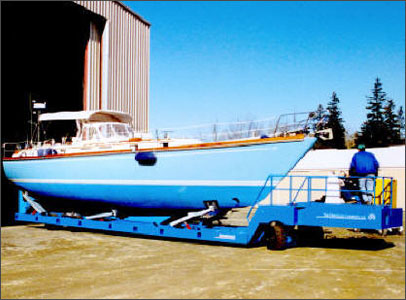

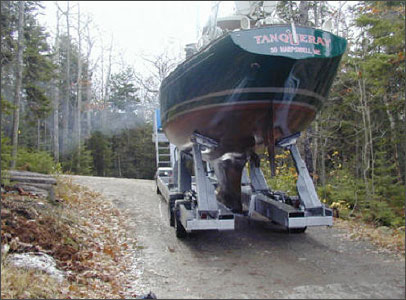

HOSTAR Model YARDSTAR 35 ton Self-Propelled Hydraulic Boat Mover for yard use, configured with the following equipment and/or specifications:

• To handle power boats to 60 feet, sailboats to 68 feet
• Overall length of 45 feet (longer or shorter if desired)
• Overall bed length of 35 feet +/-
• Overall width of 9 feet
• Capacity of 70,000 lbs.
• 12" x 12" x 1/2" structural steel tube main frame, reinforced with 12" x 25 lb. structural channel steel
• Power Plant:
    * John Deere industrial diesel engine (or equivalent) with complete instrumentation and full enclosure
    * Two two-speed hydraulic drive units with brakes at rear
    * Two hydraulic drive/steering motors at front
    * Hydraulic drive pump with hydrostatic variable displacement transmission
    * Operator's station with joystick controls
• Hydraulics:
    * Six fully adjustable hydraulic arms to handle up to 8' draft; forward-facing rear arms, inward-canting forward arms
    * Hydraulic walking beam suspension to lift/lower frame each side
    * Pilot-operated double-locking valves on all cylinders
    * Solenoid-actuated remote control with pendant operation
• Six low profile high flotation heavy lug industrial yard tires
• Four galvanized steel slide-through keel-supporting cross beams
• Stainless steel T-pins and hardware
• Finish: Entire unit sandblasted to white steel; professionally finished with two coats high-build epoxy primer with hardener,
             three coats high performance acrylic urethane with hardener - choice of color
             Galvanized arms, arm extensions, pad brackets, cross beams

Specifications and components subject to change as necessary to meet customer requirements and/or to upgrade unit.

Production Time: Twenty-two to twenty-six weeks from start of construction







Available Options


• Submersible use: Raised operator's station platform for above-water operation, stainless steel piston rods, hose ends and fittings, welded strap hangers and straps for sailboat keels, solid tires
• Wireless remote control
• Fully proportional remote control
• All-wheel steering (front and rear steering)
• Reinforced aluminum cross beams in lieu of steel beams, priced per cross beam
• Stainless steel hydraulic cylinder piston rods (arms)
• Stainless steel hose ends and fittings
• Solid tires in lieu of pneumatic tires
• Welded strap hangers and straps for sailboat keels
