GS 3200 YSA

Yard Gold Star Series 3200 YSARoad Gold Star Boat Trailer Series 3200 YSA

Bottom Space

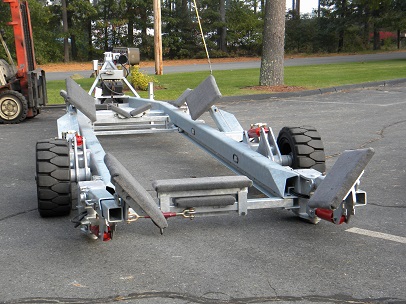

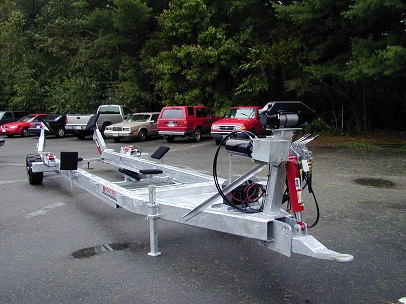

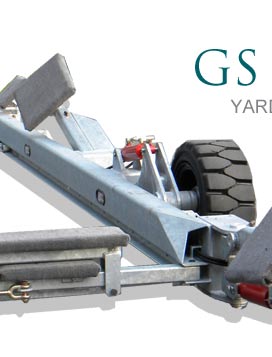

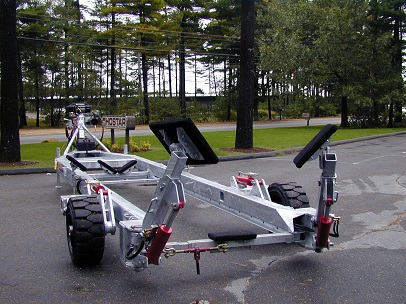

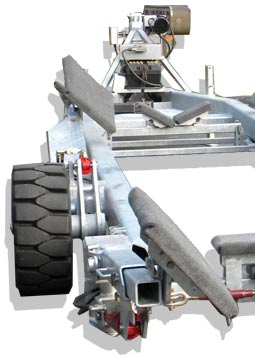

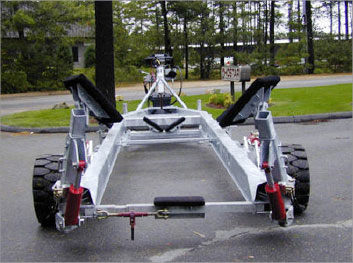

HOSTAR Gold Star Series Model 3200 Hydraulic Boat Trailer, configured with the following equipment and/or specifications:

• To handle power boats and shoal draft sailboats to 34 feet
• Overall trailer length of 32 feet
• Overall trailer width of 8 feet 6 inches
• Capacity of 20,000 lbs. in the yard
• 6" x 8" x 3/8" steel tube main frame
• Hydraulics:
    * Two rear hydraulic arms with offset reversible pads
    * Hydraulic raising and lowering of frame (each side)
    * Hydraulic front end for fore and aft lifting/leveling
    * Manual hydraulic control valves
    * 12VDC electric hydraulic power unit
    * Pilot-operated double-locking valves on all cylinders
• Hydraulic walking beam suspension (frame can be lowered to ground)
• Height-adjustable rolling forward cross beam with V-pad
• Ratchet-adjustable swing-out rear cross beam with removable booster block
• Single Dexter Heavy-Duty Series 25,000 lb. idler stub axle
• Two 28 x 12.5 x 15 low profile high flotation industrial yard tires
• Hydraulically operated pintle ring draw bar
• Two screw pad stabilizers with sockets and T-pins, mountable to frame
• Stainless steel T-pins and hardware
• Two "Big Foot" parking stands
• Expanded metal basket at trailer front
• Power connection to tow vehicle
• Finish: Frame sandblasted to white steel; finished with two coats high-build epoxy primer with hardener,
             three coats high performance acrylic urethane with hardener - choice of color

Production Time: Twelve to fourteen weeks from start of construction

Gold Star Yard Trailer Series GS 3200 YSA

Available Options

• Galvanized frame, arms, cross beams
• Galvanized arms, cross beams, parking stands only
• Stainless steel arm pivots
• Forward hydraulic arms, extendable
• Pivoting rear hydraulic arms
• Frame extended, priced per foot
• Battery charger, mounted, in lieu tow vehicle connection
• 9.5K electric planetary winch on telescoping mast mount
• Extra stabilizers with sockets/T-pins (set of 2)
• Inside frame lights, priced per pair (galvanized frame only)
• Solid tires in lieu of pneumatic tires
• Remote control with pendant operation
• Wireless remote operation in lieu of pendant operation
• Self-centering V-pad on rolling dolly
