GS 4000 Y

Yard Gold Star Series GS 4000 YYard Trailers Gold Star Series GS 4000 YGold Star Yard Trailer Series GS 4000 Y

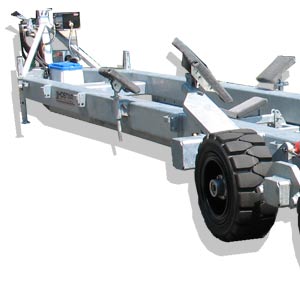

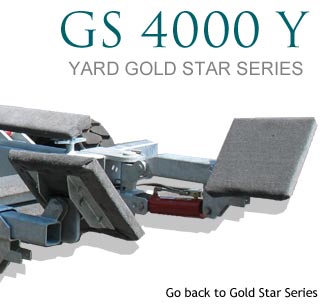

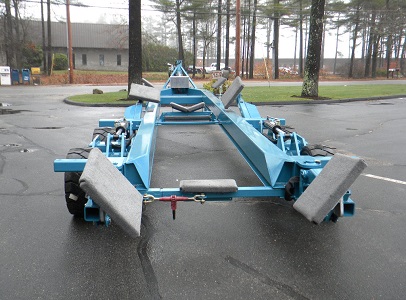

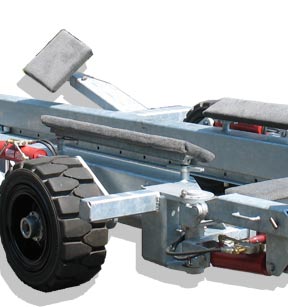

HOSTAR Gold*Star Series Model 4000Y Hydraulic Yard Trailer, configured with the following equipment and/or specifications:

• To handle power boats and shoal draft sailboats to 44 feet
• Overall trailer length of 40 feet
• Overall trailer width of 9 feet or 9 feet 6 inches
• Capacity of 40,000 lbs. in the yard
• 8" x 10" x 3/8" steel tube main frame
• Hydraulics:
    * Two extendable outward/inward pivoting rear hydraulic arms
    * Two forward hydraulic arms, extendable
    * Hydraulic raising and lowering of frame (each side)
    * Hydraulic front end for fore and aft lifting/leveling
    * Manual hydraulic control valves
    * 12VDC electric hydraulic power unit
    * Pilot-operated double-locking valves on all cylinders
• 4D marine battery
• Outboard hydraulic walking beam suspension (frame can be lowered to ground)
• Height-adjustable rolling cross beam with two V-pads
• Ratchet adjustable swing-out rear cross beam with removable booster block
• Two Dexter Heavy-Duty Series 25,000 lb. idler stub axles
• Four 28 x 12.5 x 15 low profile high flotation industrial yard tires
• Hydraulically operated pintle ring draw bar
• Two screw pad stabilizers with sockets and T-pins, mountable to frame
• Stainless steel T-pins and hardware
• Two longitudinal height-adjustable bunks
• Two "Big Foot" parking stands
• Expanded metal basket at trailer front
• Power connection to tow vehicle
• Finish: Frame sandblasted to white steel; finished with two coats high-build epoxy primer with hardener, three coats high performance acrylic urethane with hardener - choice of color

Production Time: Twelve to fourteen weeks from start of construction






Available Options

• Galvanized frame, arms, cross beams, parking stands
• Galvanized arms, cross beams, parking stands only
• Stainless steel arm pivots
• Frame extended
• Battery charger, mounted, in lieu of tow vehicle connection
• 12.5K electric planetary winch on telescoping mast mount
• Inside frame lights, priced per pair (galvanized frame only)
• Solid tires in lieu of pneumatic tires
• Remote control with pendant operation; priced per hydraulic function
• Wireless remote operation in lieu of pendant operation
• Fixed gooseneck for fifth-wheel operation
• Hydraulically articulating gooseneck for fifth-wheel operation
• Self-centering V-pad on rolling dolly
